Electrolyte Analyzer
STAX-6
Benchtop type electrolyte analyzer.
6 types of configurations meet various laboratories’ needs.
●Selectable from with/without Turn table.
Selectable from 3 types of measured parameter models.
※TypeE:cNa⁺、cK⁺、cCl⁻(Hct)
TypeL:cNa⁺、cK⁺、cCl⁻、cLi⁺(Hct)
TypeC:cNa⁺、cK⁺、cCa²⁺、pH(Hct)
●Spot / STAT samples can be measured by wobbling nozzle independent from Auto-sampler (with Turn table)

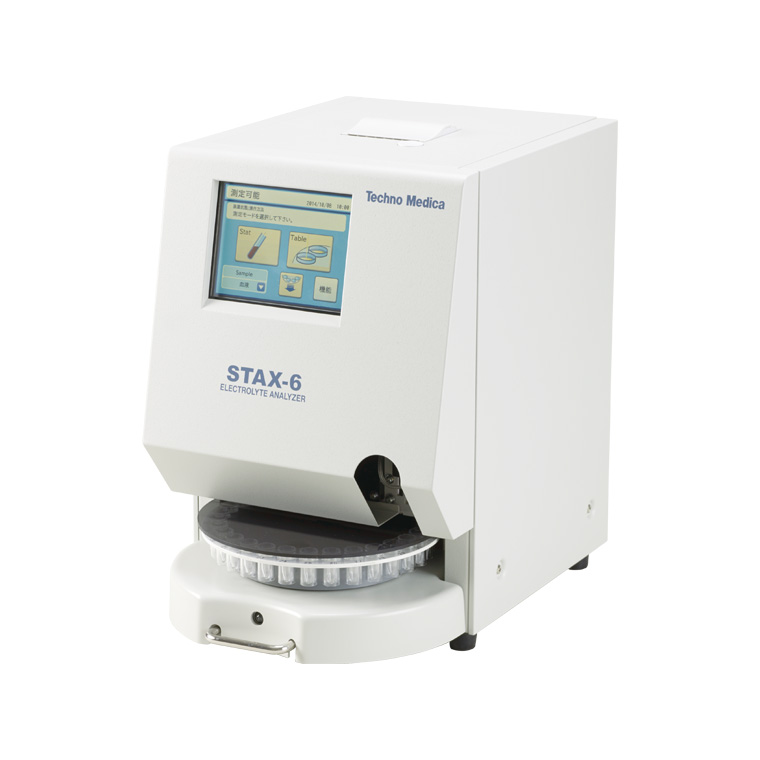

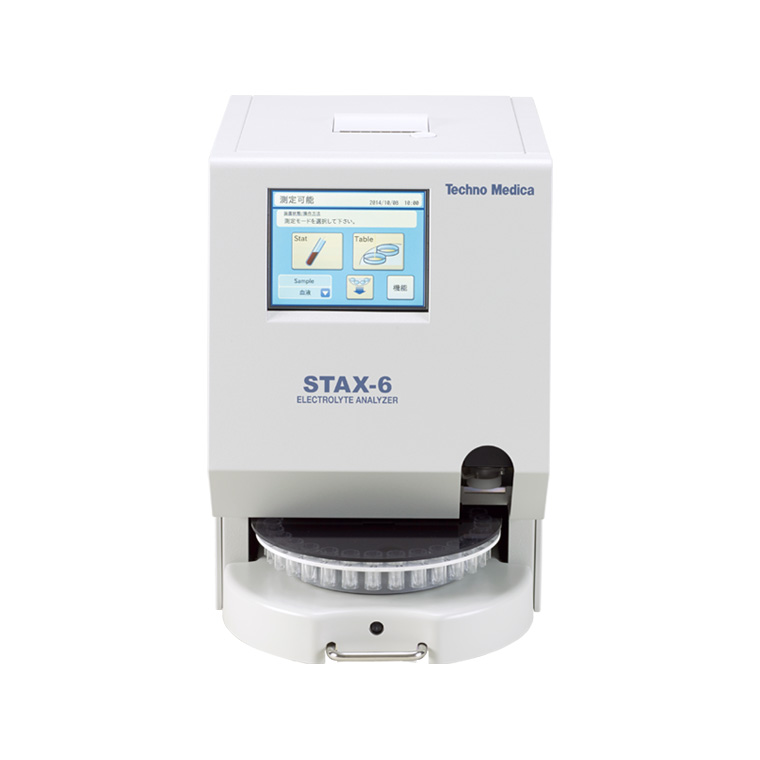

With Turn table
Item | Specification/Feature |
---|---|
Sample Type | Whole blood, Serum, Plasma, Diluted Urine, Dialysate, ISE-CRS |
Sample Volume | 110uL (500uL for Dialysate) |
Throughput | Approximately 120 samples per hour (turn table mode) Approximately 34 seconds per sample (STAT mode) |
The number of specimens for turn table | 30 cups |
Calibration | Programmable automatic 2 point calibration per hour |
Reproducibility (blood) | CV ⊆ 1% in the measurement range |
Measured Range | Type: E cNa+ (Ion-selective electrode technology): 80.0-200.0mmol/L cK+ (Ion-selective electrode technology): 1.00-10.0mmol/L cCl- (Ion-selective electrode technology): 50.0-200.0mmol/L Hct (Electric conductivity method): 12.0-65.0% Type: L cNa+ (Ion-selective electrode technology): 80.0-200.0mmol/L cK+ (Ion-selective electrode technology): 1.00-10.0mmol/L cCl- (Ion-selective electrode technology): 50.0-200.0mmol/L cLi+ (Ion-selective electrode technology): 0.2-5.0mmol/L Hct (Electric conductivity method): 12.0-65.0% Type:C cNa+ (Ion-selective electrode technology): 80.0-200.0mmol/L cK+ (Ion-selective electrode technology): 1.00-10.0mmol/L cCa2+ (Ion-selective electrode technology): 0.5-5.0mmol/L pH (Ion-selective electrode technology): 6.000-8.000 Hct (Electric conductivity method): 12.0-65.0% |
Display | 5.7 inch full color LCD/tough panel |
Printer | 58 mm wide line thermal |
Interface | RS-232C、TCP/IP、USB |
Others | Others: ・Data storage: 1000 samples ・Data search/display/print function ・Cup detect sensor Human detect sensor ・Re-measurement function ・Sample volume detect function ・Chylemia measurement function ・Turn table |
Operating environment | Temperature: 10-30 degree Celsius Humidity: 10-80% |
Power | AC85-240V 50/60Hz 50VA |
Dimension | 256(W)×339(D)×367(H)mm |
Weight | 17KG |
●Turn table cannot be added after installation.
●Measured parameter cannot be added after installation.
●Machine appearance and specification might be changed without notice.

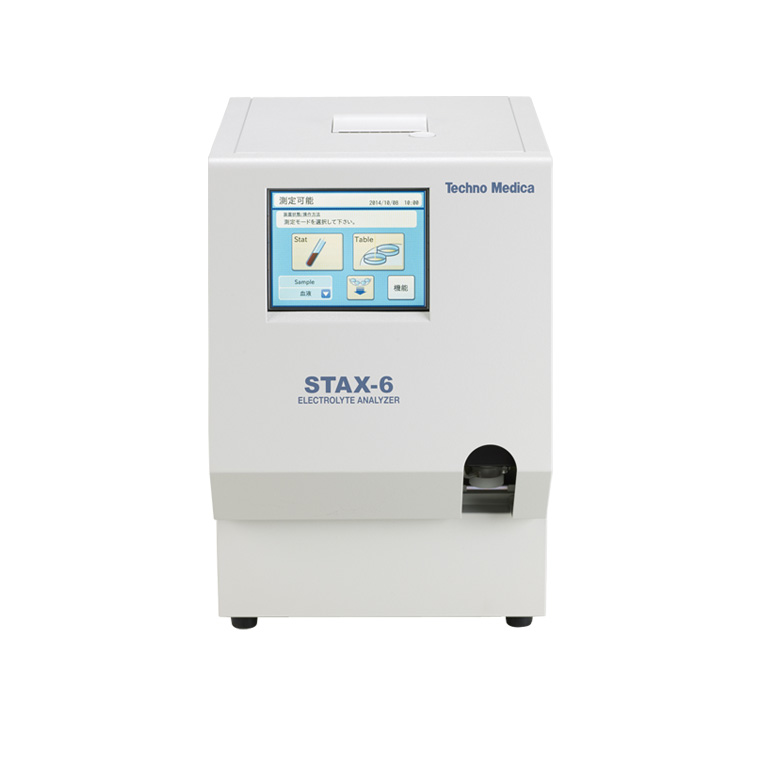

Without turn table
Item | Specification/Feature |
---|---|
Sample Type | Whole blood, Serum, Plasma, Diluted Urine, Dialysate, ISE-CRS |
Sample Volume | 110uL (500uL for Dialysate) |
Analysis Time | Approximately 34 seconds per sample |
Calibration | Programmable automatic 2 point calibration per hour |
Reproducibility (blood) | CV ⊆ 1% in the measurement range |
Measured Range | Type: E cNa+ (Ion-selective electrode technology): 80.0-200.0mmol/L cK+ (Ion-selective electrode technology): 1.00-10.0mmol/L cCl- (Ion-selective electrode technology): 50.0-200.0mmol/L Hct (Electric conductivity method): 12.0-65.0% Type: L cNa+ (Ion-selective electrode technology): 80.0-200.0mmol/L cK+ (Ion-selective electrode technology): 1.00-10.0mmol/L cCl- (Ion-selective electrode technology): 50.0-200.0mmol/L cLi+ (Ion-selective electrode technology): 0.2-5.0mmol/L Hct (Electric conductivity method): 12.0-65.0% Type:C cNa+ (Ion-selective electrode technology): 80.0-200.0mmol/L cK+ (Ion-selective electrode technology): 1.00-10.0mmol/L cCa2+ (Ion-selective electrode technology): 0.5-5.0mmol/L pH (Ion-selective electrode technology): 6.000-8.000 Hct (Electric conductivity method): 12.0-65.0% |
Display | 5.7 inch full color LCD/tough panel |
Printer | 58 mm wide line thermal |
Interface | RS-232C、TCP/IP、USB |
Others | ・Data storage: 1000 samples ・Data search/display/print function ・Cup detect sensor ・Human detect sensor ・Re-measurement function ・Sample volume detect function ・Chylemia measurement function |
Operating environment | Temperature: 10-30 degree Celsius Humidity: 10-80% |
Power | AC85-240V 50/60Hz 50VA |
Dimension | 256(W)X339(D)X367(H)mm |
Weight | 14 KG |
●Turn table cannot be added after installation.
●Measured parameter cannot be added after installation.
●Machine appearance and specification might be changed without notice.
