Automated Tube Selecting and Labeling System
BC・ROBO-888

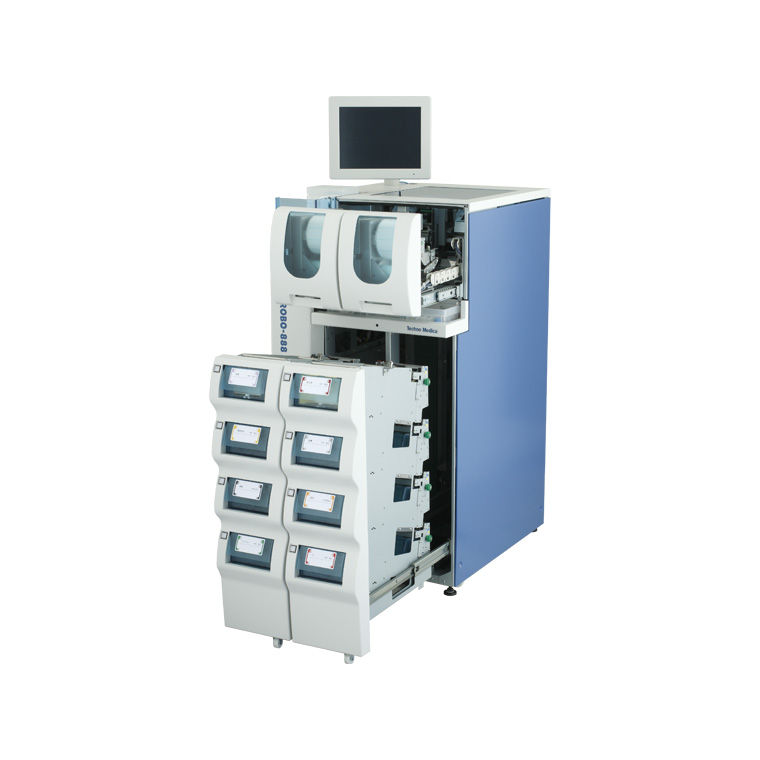

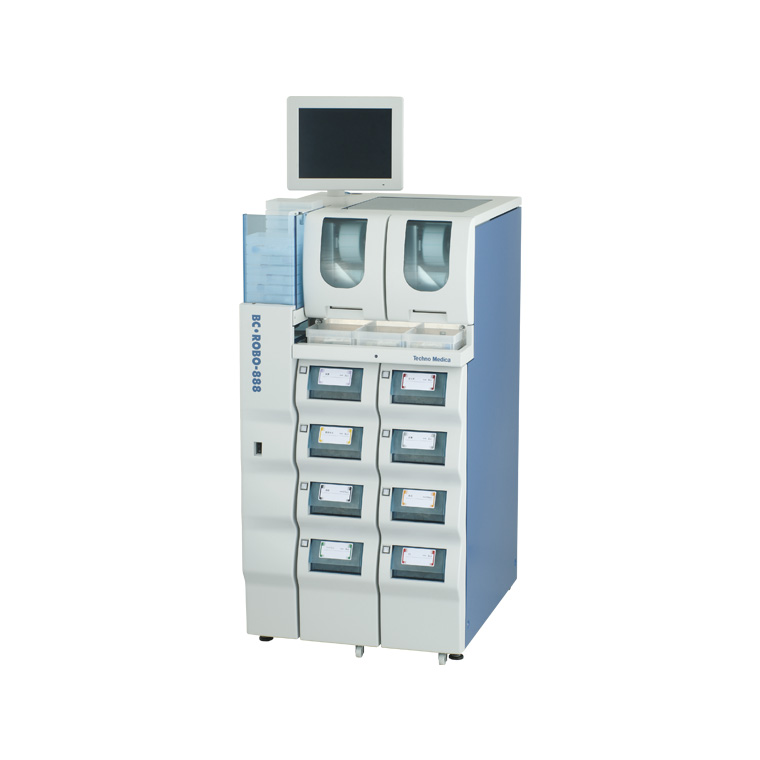

BC・ROBO-888 is a long-seller model of Automated Tube Selecting and Labeling System.
The system produces kits with correct tubes and correct barcode labels along with a worklist.
●Touch panel display and Wrong tube loading detector realize safety, ease and accuracy.
●Built-in barcode scanner verifies if labeled barcode on each tube is readable or matched with LIS or HIS data after labeling label on tube.
●Reject unit is designed to hold incomplete trays inside the system so that user will not mix up with usable trays.
| Item | Specification/Feature |
|---|---|
| Available tube | Diameter 12-18mm Length 75-100mm Can use Rubber, Film, Plastic, none closure and urine tubes (Some unique shape tubes cannot be used) |
| Throughput | 10 sec/patient when processing 4 tubes (360patient/hour) |

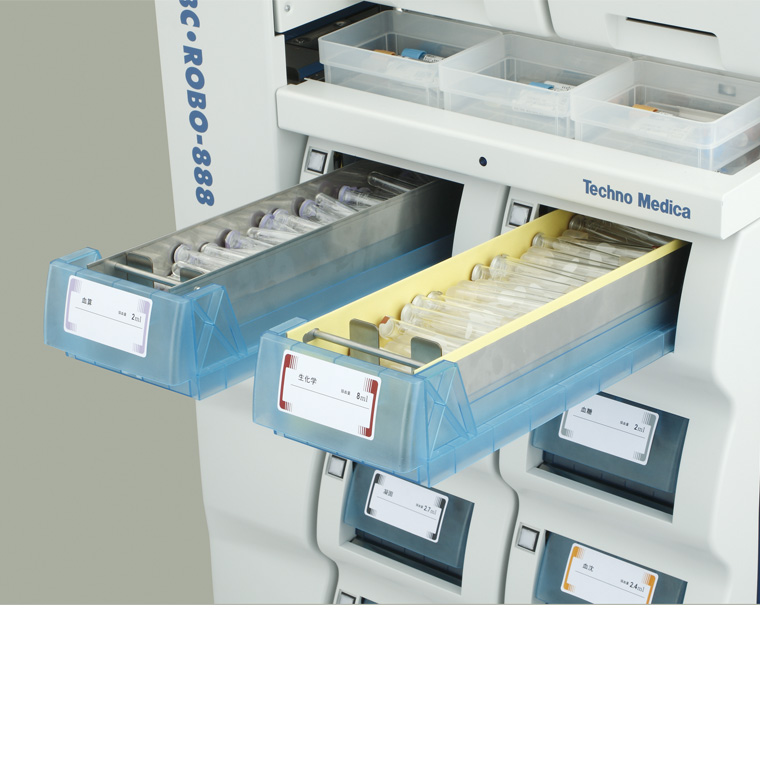

| Drawer capacity | 100 tubes per drawer |

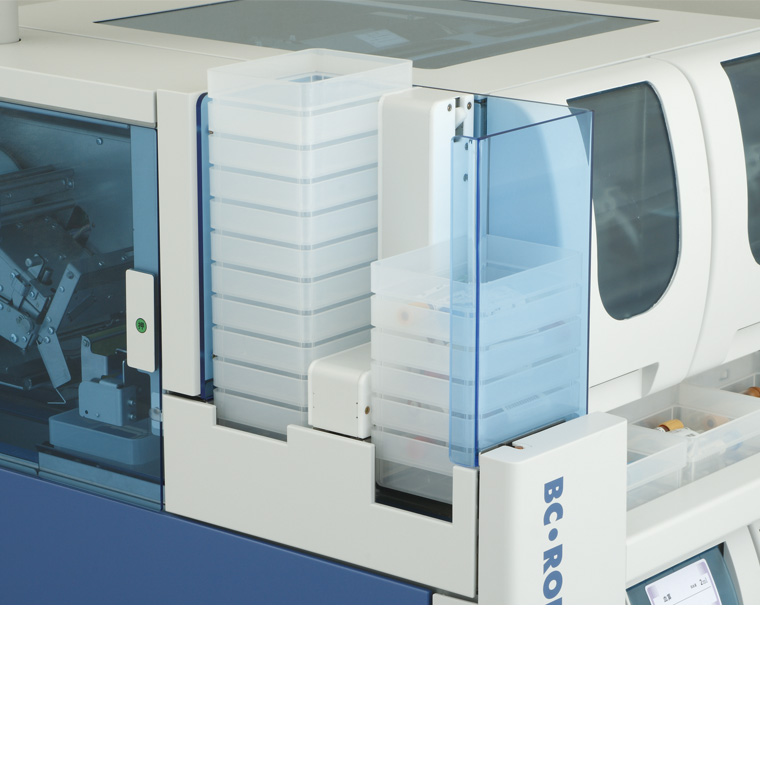

| Number of empty trays | 20 empty trays on standby Walk away time: 4 trays for horizontal output 20 trays for tray stacker |
| Print method | Direct thermal |
| Printing | Barcode: Code 39, JAN, Code 128A/B/C, 2of 5, NW7(Codabar) etc. Alpha numeric, Black & White inversion, Line and box drawing Rotate(90,180,270 degree) Black & White inversion, Line and box drawing |
| Label | 50 * 30 / 50*35 mm |
| Barcode Quality Control | Built-in barcode scanner verifies if labeled barcode on each tube is readable or matched with LIS or HIS data after labeling label on tube. |
| Software | ●Interface ●Compatible to IHE LBL, TCP/IP, RS-232C (Refer to interface protocol specification) ●Inpatient / STAT patient priority function / Reprint function ●Adjustable labeling position to each tube ●Different label design in each tube ●Display masking function ●Statistic function |
| Power | AC 100V 50/60HZ |
| Power consumption | 800VA |
| Dimension | 600(W)*755(D)*1180mm(H) excluding panel PC |
| Weight | 240 KG |
●Machine appearance and specification might be changed without notice.
