Fully Automated Urine Aliquot & Labeling System
UA・ROBO-2000RFID
Innovative pre-analytical instrument which aliquots urine sample from the urine cup to the urine tube.
The new instrument brings complete automation to pre-analytical phase of urine test.

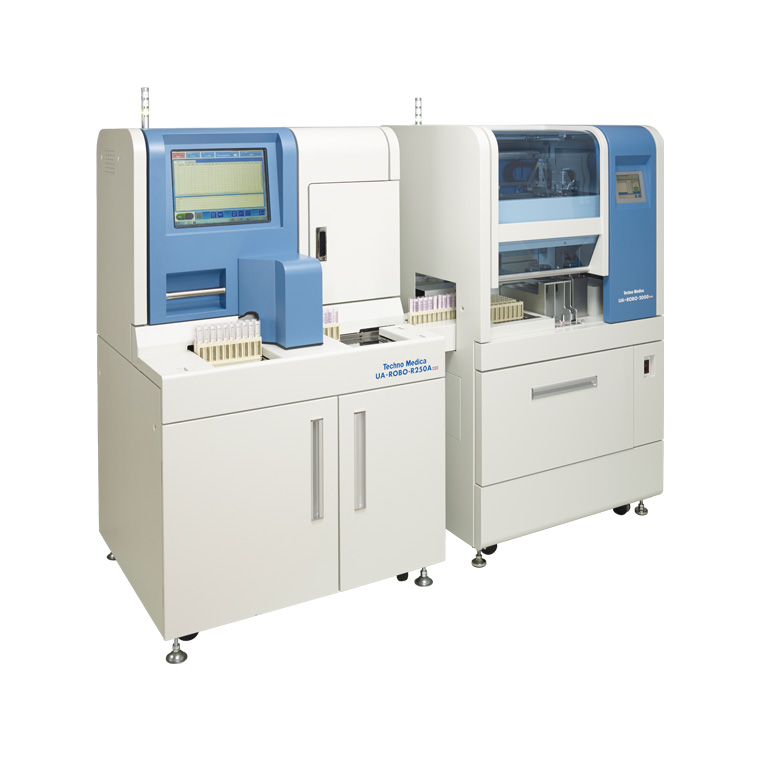

Connectable with urine chemistry analyzer UA ROBO-R250A.
●Disposable tip can be wasted after use easily.
●Small sample volume required.
●Accepts 2 types of urine tubes.
Turn table unit prevents forming urine samples during aliquot.
Item | Specification/Feature |
---|---|
Product Name | Fully Automated Urine Aliquot & Labeling System |
Model Name | UA・ROBO-2000RFID |
Throughput | 180 samples / h(1 tube) 150 samples / h(2 tubes) |
Supply section | Accepts 2 types of urine tubes (Chemistry tube & Sedimentation tube) |
Number of empty tubes | 100 tubes / type |
Number of disposable tips | 100 pieces |
Sample Volume | 15mL~100mL |
HARN Cup Rack | 4 Cup Rack |
Number of loadable HARN Cup rack per machine | 5 rack (20 HARN cups) |
Urine volume shortage detection | Sample Volume Detect Function with pressure sensor |
Method to mix up sample | Samples are mixed up not by stirring rod, but titubation. |
Aspiration Volume | Maximum 11mL |
Urine tube rack | TMC 10 Tube Rack |
Number of loadable rack | 10 TMC Rack (100 tubes) |
Number of loadable rejected tube | 1 rack (10 tubes) |
Printer | Direct thermal transfer Optional RFID printer |
Label size | 50*30mm / 50*35mm 50*30 mm label is available for optional RFID printer. |
Barcode | code128,code39,JAN,NW-7 (Codabar) |
Printing: | Numerical, Alphabet, Symbol, Japanese |
Interface | TCP/IP・RS-232C |
Dimension | 860(W)*1030(D)*1500(H)mm |
Power | AC100V、50/60Hz |
Power consumption | 1200VA |
Weight | 330KG |
Optional Tube Transfer Unit
Item | Specification/Feature |
---|---|
Number of loadable rack | 10 TMC Rack (100 tubes) |
Number of rack in transfer buffer | 3 TMC Rack (30 tubes) |
Number of loadable rack inside machine | 16 tube rack * 2 types |
Number of loadable rejected tube | 1 rack (8 tubes) |
※Machine appearance and specification might be changed without notice.
