Automated Tube Selecting and Labeling System
BC・ROBO-8000RFID
BC・ROBO-8000 RFID is the newest model of Automated Tube Selecting and Labeling System with RFID printer option.
The system produces kits with correct tubes and correct barcode labels along with a worklist.
●Touch panel display, Label auto-loading function and Wrong tube loading detector realize safety, ease and accuracy.

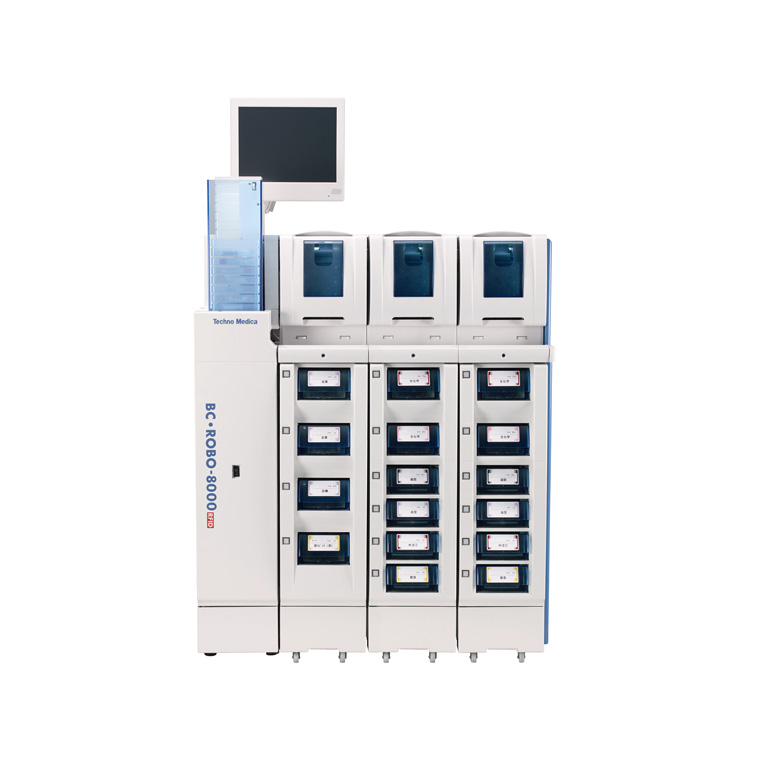

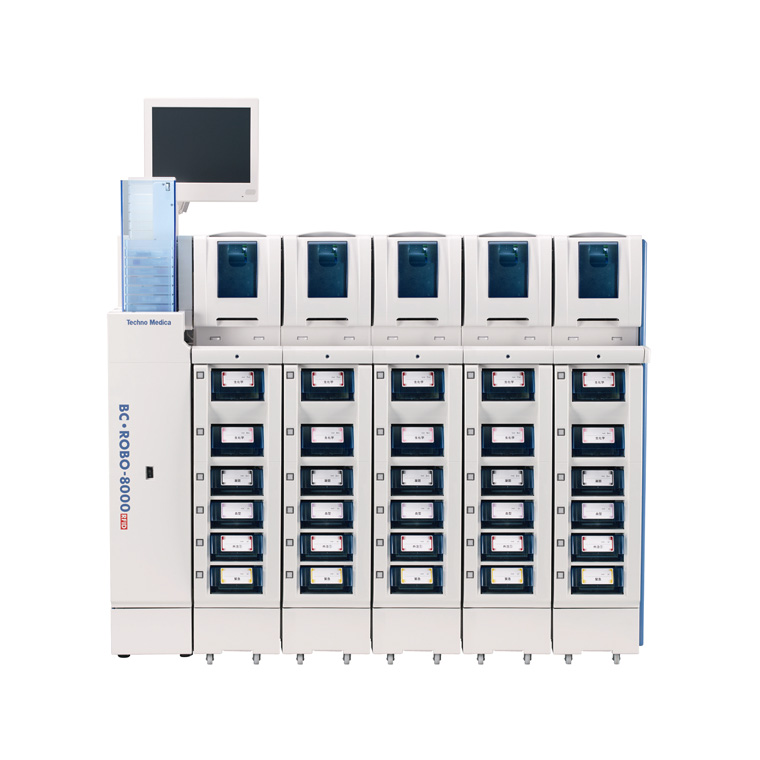

●Modular concept with 4-30 tube type (5 modules in maximum) meets a variety of needs. Tailor made system selectable depending on customer’s operating environment and usage .
●Intelligent Carriage enhances back up function in case of sudden mechanical error.
Item | Specification/Feature |
---|---|
Available tube | Diameter 12-18mm Length 75-100mm Can use Rubber, Film, Plastic, none closure and urine tubes (Some unique shape tubes cannot be used) |
Throughput | 12 sec/patient when processing 4 tubes (300patient/hour) |

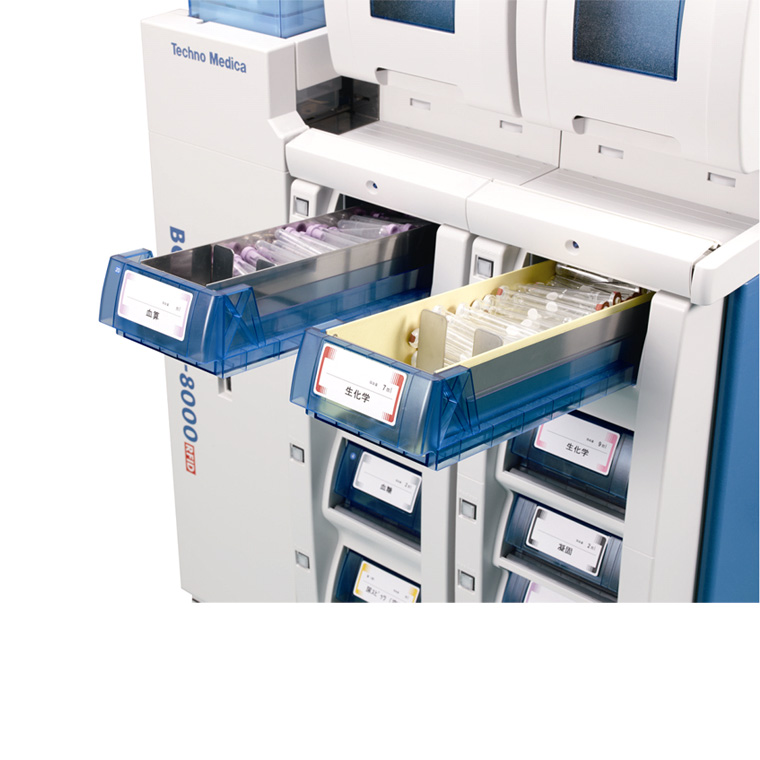

Drawer capacity | 100 tubes for big drawer 35-50 tubes for small drawer (depends on tube size) |

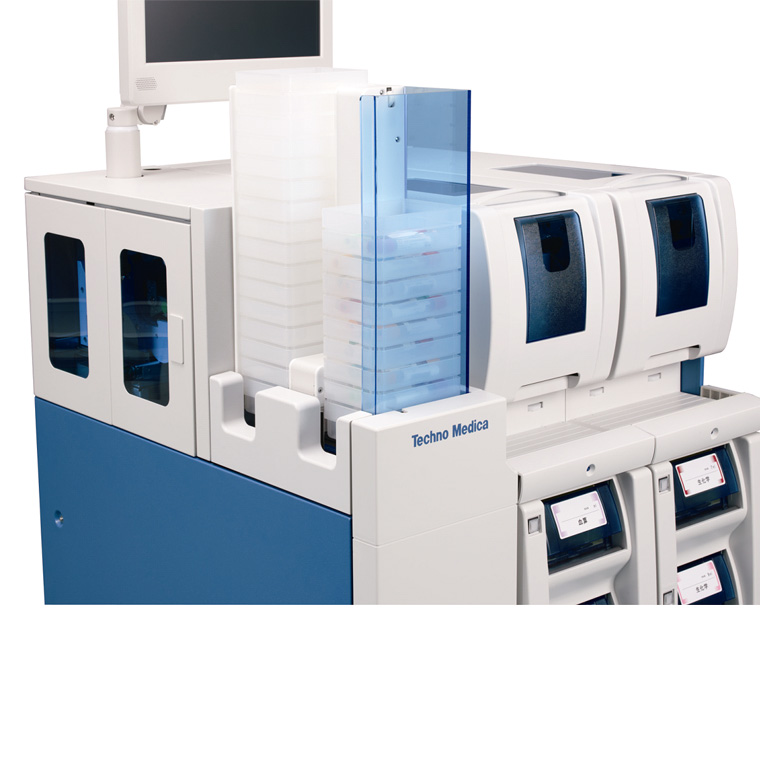

Number of empty trays | 20 empty trays on standby Walk away time: 4 trays for horizontal output (In case of 2 module configuration) 20 trays for tray stacker |
Print method | Direct thermal or Thermal transfer |
Printing | Barcode: Code 39, JAN, Code 128A/B/C, 2of 5, NW7(Codabar) etc. Alpha numeric, Black & White inversion, Line and box drawing Rotate(90,180,270 degree) Black & White inversion, Line and box drawing |
Label | 50 * 30 / 50*35 mm |
Label roll set | Label Auto-loading |
Barcode Quality Control | Built-in barcode scanner verifies if labeled barcode on each tube is readable or matched with LIS or HIS data after labeling label on tube. |
Wrong tube loading detector | Verifies if labeled tube is correct and matched with LIS or HIS by detecting shape & color of tube cap, tube length and tube diameter. |
Software | ●Interface ●Compatible to IHE LBL, TCP/IP, RS-232C (Refer to interface protocol specification) ●Batch processing / Outpatient / Inpatient / Outpatient priority function / STAT patient priority function / Reprint function ●Adjustable labeling position to each tube ●Different label design in each tube ●Display masking function ●Statistic function |
Power | AC 100V 50/60HZ |
Power consumption | 500 VA in case of 2 module configuration |

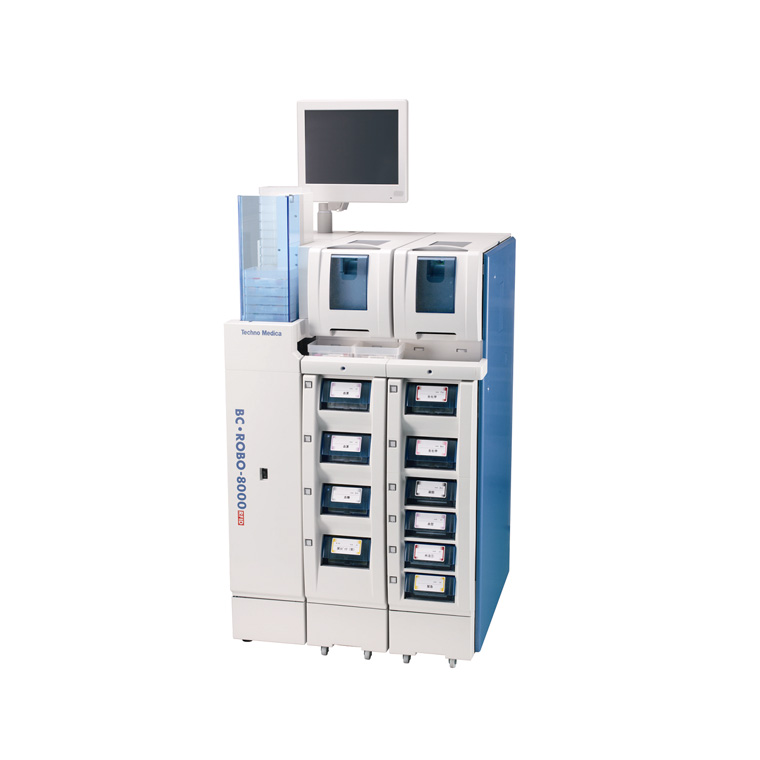

Dimension | 745(W)*795(D)*1220mm(H) in case of 2 module configuration excluding panel PC |
Weight | 350 KG in case of 2 module configuration |
●Machine appearance and specification might be changed without notice.
●Option: Bag Insert Unit, ABCT (Automatic Blood Collecting Table)
