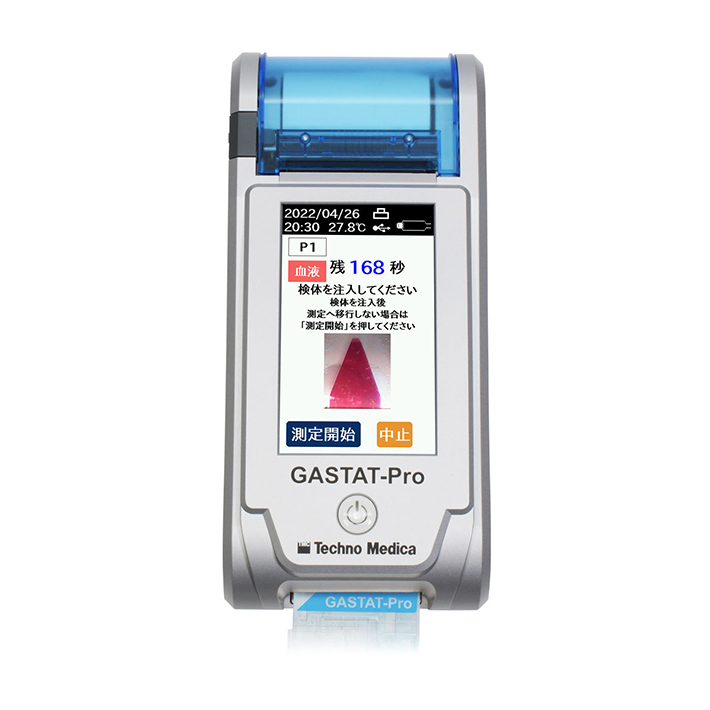

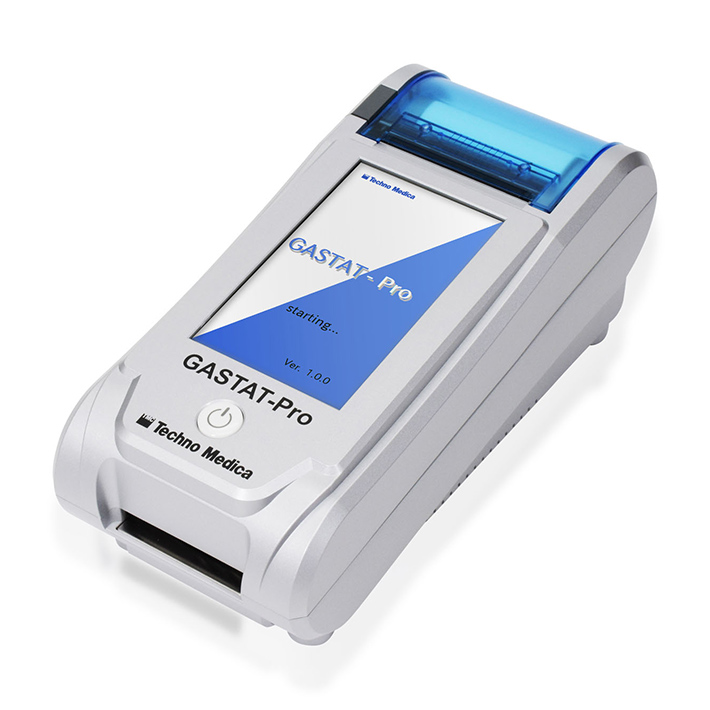

Blood Gas Analyzer

GASTAT-Pro

Portable Type Blood Gas System with a variety of features.
Japan Premium Quality.

Blood gas and electrolytes test results
within 45 seconds.
(※Measured time after sample injection. )

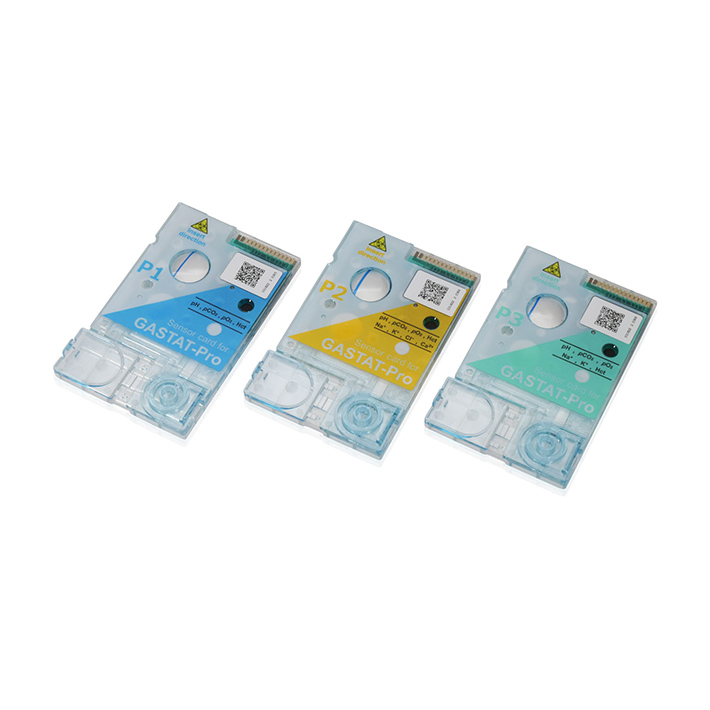

Long Shelf-life Sensor Card
2 months in room temperature (9~30℃)
12 months in refrigerator (2~8℃)
Automatic Sample Transport System
enables a sample to be transported by
device driven and it achieves stability of
test results.

Spec

● Machine appearance and specification might be changed without notice.
Item	Specification/Feature
Sample Type	Human blood (whole blood, serum, plasma) Dialysate ISE-CRS GASTROL-QC
Measured parameters	pH : 6.000 – 8.000 pCO₂ : 5.0 – 250.0 Torr pO₂ : 5.0 – 720.0 Torr cNa⁺ : 50.0 – 200.0 mmol/L cK⁺ : 1.0 – 12.0 mmol/L cCl⁻ : 50.0 – 200.0 mmol/L cCa²⁺ : 0.25 – 5.0 mmol/L Hct : 10.0 – 75.0%
Calculated parameters	cHb, cHCO₃⁻std, cBE(ecf), cBE(B), cBB, sO₂(est), ctCO₂(P), ctO₂(a), cCa²⁺(7.4), pO₂(A-a), RI,AG, pH(T), pCO₂(T), pO₂(T)
Sample volume	Over 90 µL
Analysis time	135 seconds (90 seconds calibration + 45 seconds analysis)
Calibration	1 point calibration before each sample analysis
Display	Color touch LCD

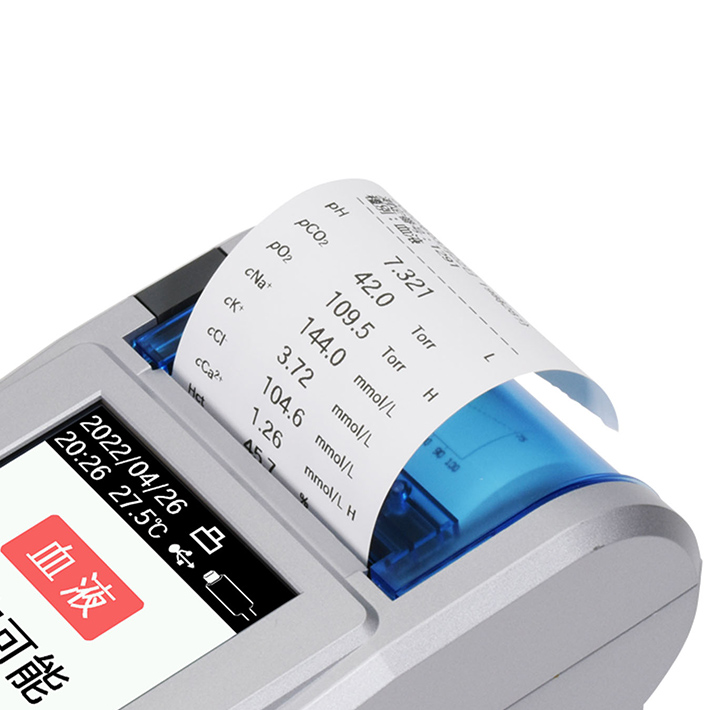

Printer	20 digits thermal (58 mm)
Data capacity	5000 results
Interface	USB
Sensor card shelf life	2 months in room temperature (9～30℃) 12 months in refrigerator (2～8℃)
Operating environment	Temperature: 10 – 32 ℃ Humidity: 20 – 80 % (No condensation)
Dimensions	Body: 100(W) – 220(D) – 90(H) mm Sensor card: 49.8(W) – 77.0(D) – 8.2(H) mm
Weight	1.0 kg
Power	AA batteries 4 primary batteries/AA rechargeable battery 4 secondary batteries AC 100 – 240V 50/60Hz 0.58A (AC adapter)
