Automated Tube Selecting and Labeling System

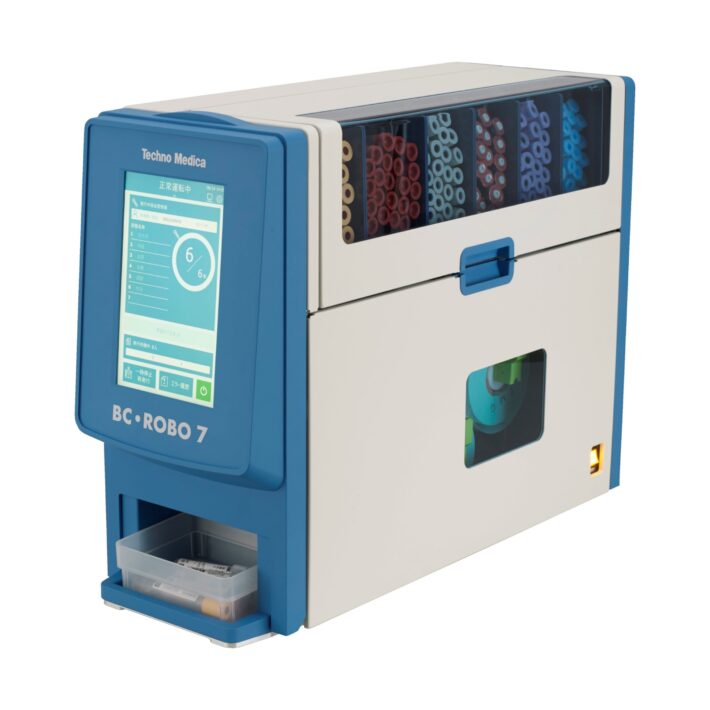

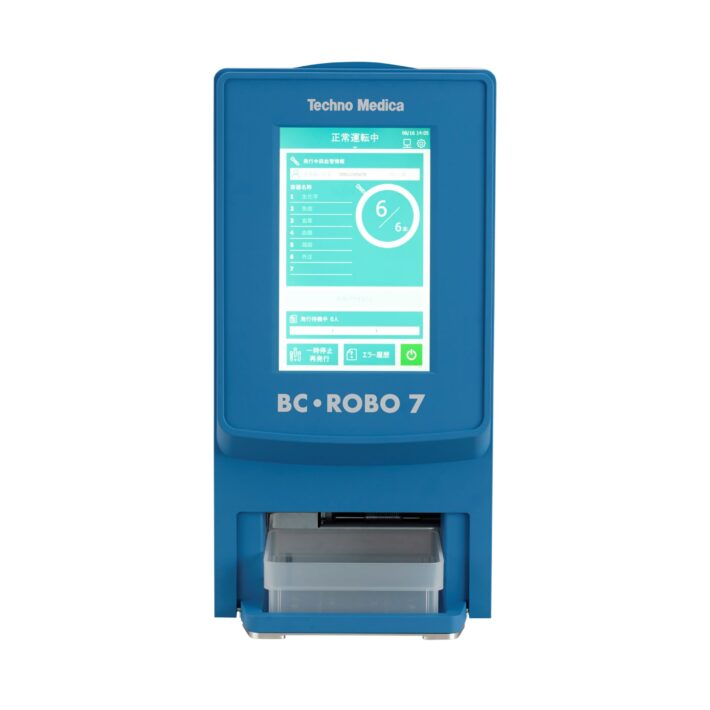

BC・ROBO 7

BC・ROBO 7 is smart and compact size labeler which is suitable for small workload laboratories, decentralized phlebotomy room, hospital ward, clinics, ER, ICU, diagnostic center, blood transfusion center, chemotherapy center.

Feature

Desktop type with capability of 6 type of tube preparation.
High Throughput/2.5 seconds per tube in batch processing.
Compact size with built-in PC and built-in manual printer.
Semi-Automatic Loading Printer.
User-Friendly Interface/ User can easily recognize instrument condition by colors of screen.

Spec

●Machine appearance and specification might be changed without notice.
Item	Specification/Feature
Available tube	Diameter 12-17mm Length 75-105mm Plastic, Rubber, Film Capped tubes
Number of tube loading	6 kind of tubes
Tube supply capacity	Either 30 tubes in diameter 16 or 35 tubes diameter 12 for 2 big slots 30 tubes in diameter 12 for 4 small slots
Walk away time	1 tray
Number of printer	2 printers
Print method	Direct thermal transfer
Printing	Alpha numeric,barcode,Rotate(90,180,270 degree) Black & White inversion, Line and box drawing
PC	8.4 inch color touch panel
Available barcode	Code 39, JAN, Code 128A/B/C, 2of 5, NW7(Codabar) etc.
Interface	TCP/IP
Power source	AC100-240V
Dimensions	210W-565D-430H(mm)
Weight	27Kg
Standard	CE
