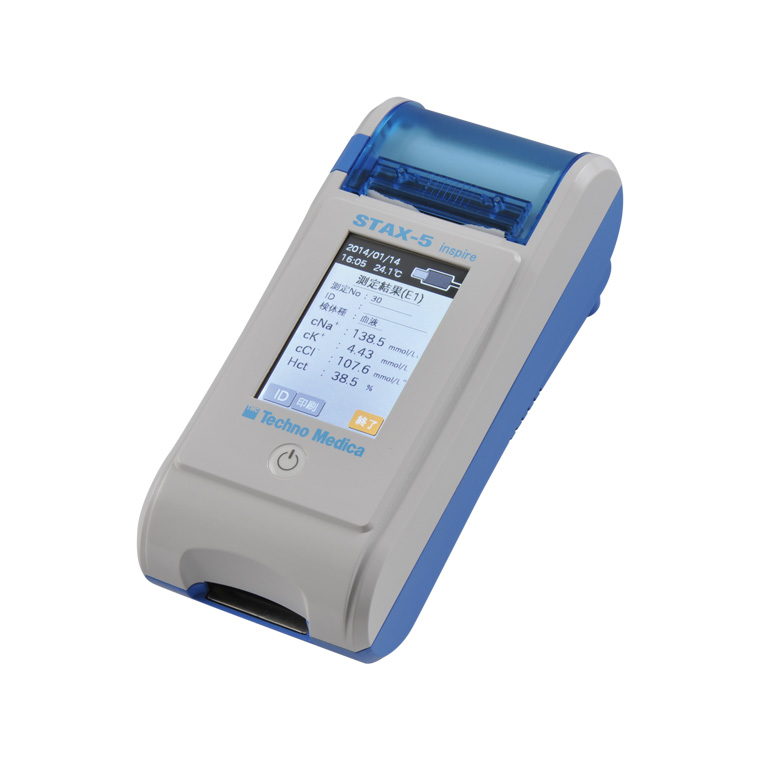

Portable Electrolyte Analyzer
STAX-5 inspire
Full electrolyte parameters by finger drop of 10µL blood.
The world’s first portable magnesium analyzer.
●Quick test result within 60 – 180seconds.
●On-board printer.
| Item | Specification/Feature |
|---|---|
| Sample Type | Whole blood, Plasma, Serum, Dialysate, Urine, Spinal fluid, control (ISE-CRS) |
| Sample Volume | 10μL by finger drop blood or from syringe |

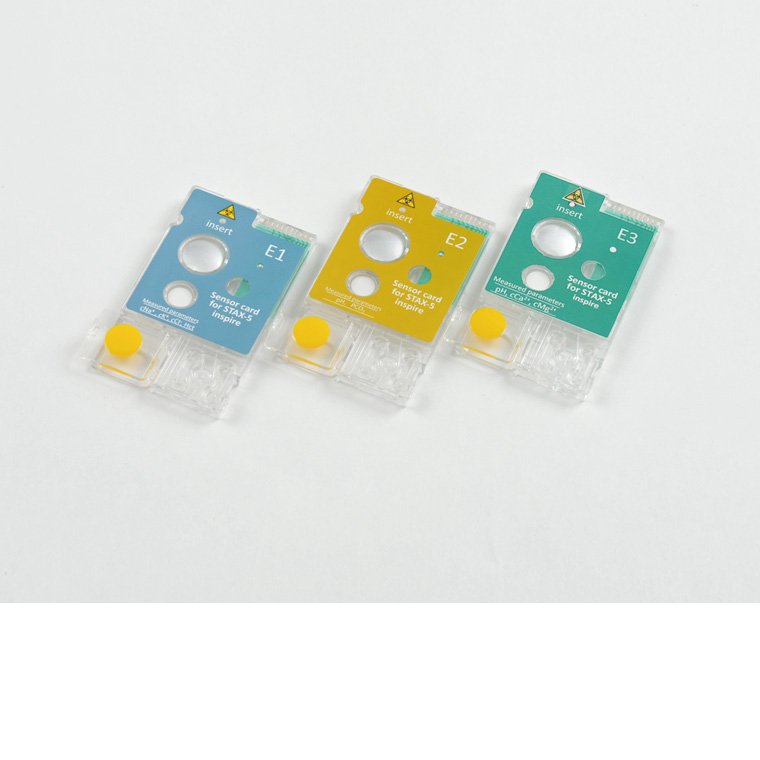

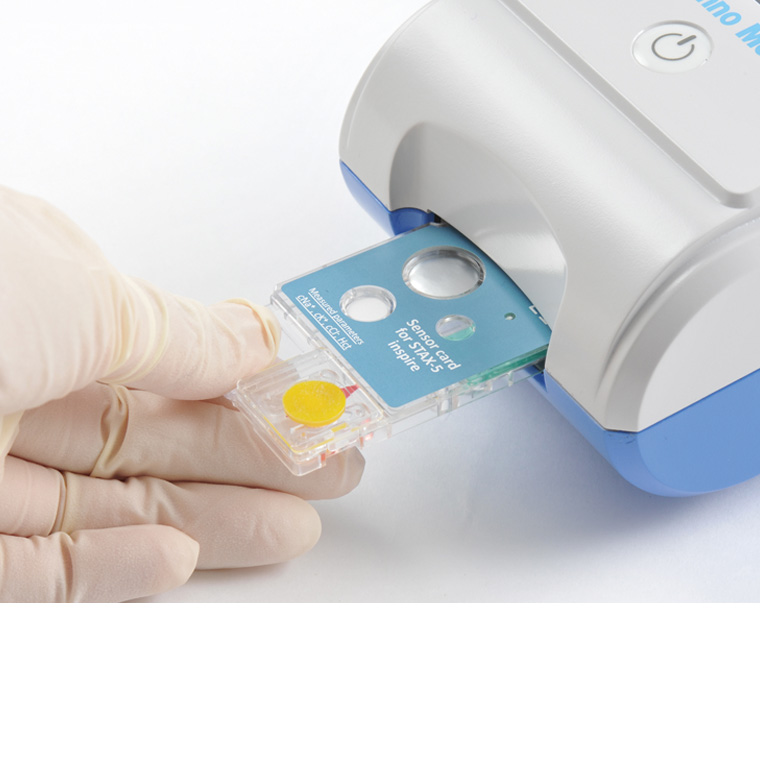

| Test Available (Measured) | Sensor Card E1：cNa⁺、cK⁺、cCl⁻、Hct（AG） Sensor Card E2：pH、pCO₂（cHCO₃⁻） Sensor Card E3：cCa²⁺、cMg²⁺、pH（Entered value：<Alb>） |
| Analysis Time | Sensor Card E1：60s Sensor Card E2：180s Sensor Card E3：180s |
| Principle | Ion Selective Method (Hct: Electrical Conductivity Method) |
| Calibration | Automated 1point calibration before analysis |
| Measurement Range | pH：6.000〜8.000 pCO₂：10.0〜200.0 torr cNa⁺：100.0〜180.0 mmol/L cK⁺：1.00〜10.00 mmol/L cCl⁻：50.0〜200.0 mmol/L cMg²⁺：0.25〜2.50 mmol/L cCa²⁺：0.50〜5.00 mmol/L Hct：15.0〜65.0% |
| Display | 3.5inch color touch panel display |
| Printer | Built-in |
| Interface | USB |
| Other functions | Data capacity 3,000 results ・Data research / display / re-printing ・Between-lot data correlation by RFID tag on Sensor Card |
| Operating temperature environment | Device: 10-35 degree Celsius Sensor Card: 15-30 degree Celsius |
| Sensor card storage condition and shelf life | Sensor Card E1/E2 1 year refrigerated 2 months in room temperature Sensor Card E3 6 months refrigerated 2 weeks in room temperature |
| Power | AC 100 – 240V, 50/60Hz AA Battery |
| Dimension | Body: 95(W) - 215(D) – 86.5(H) mm Sensor card: 45(W) - 69(D) – 7.0(H) mm |
| Weight | 0.85 KG excluding battery |
●Machine appearance and specification might be changed without notice.
