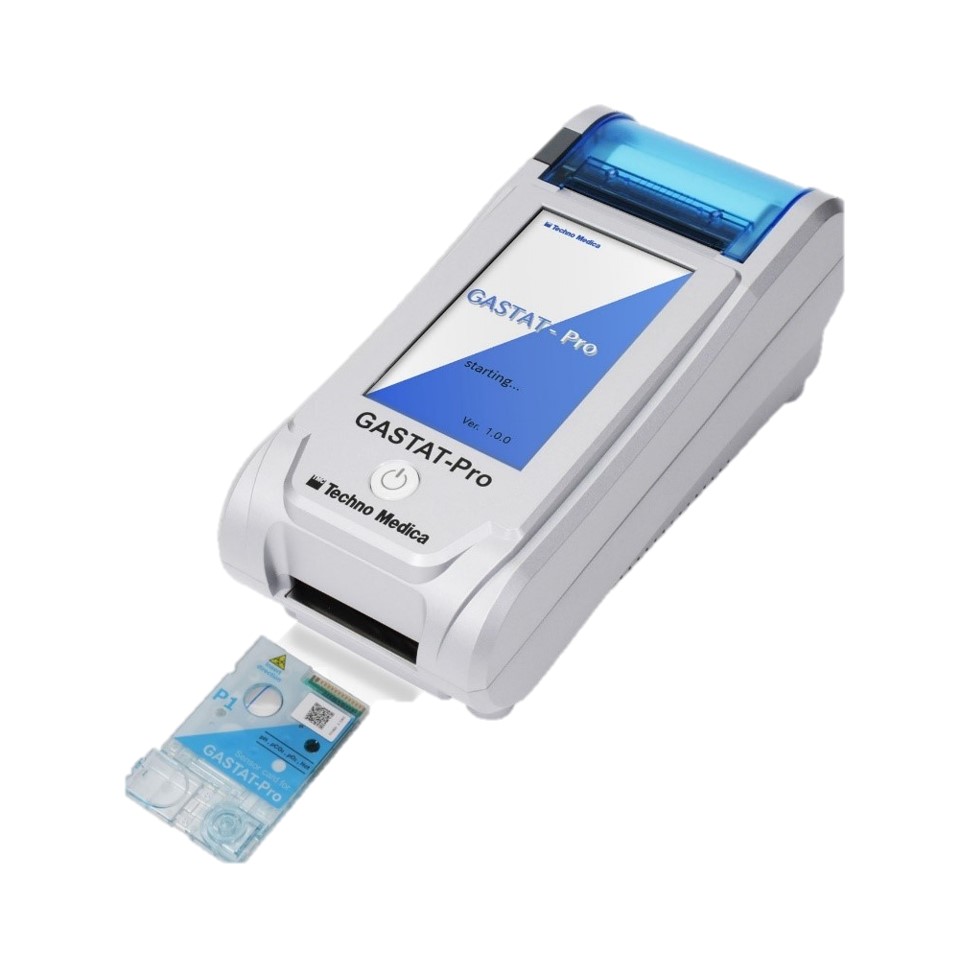

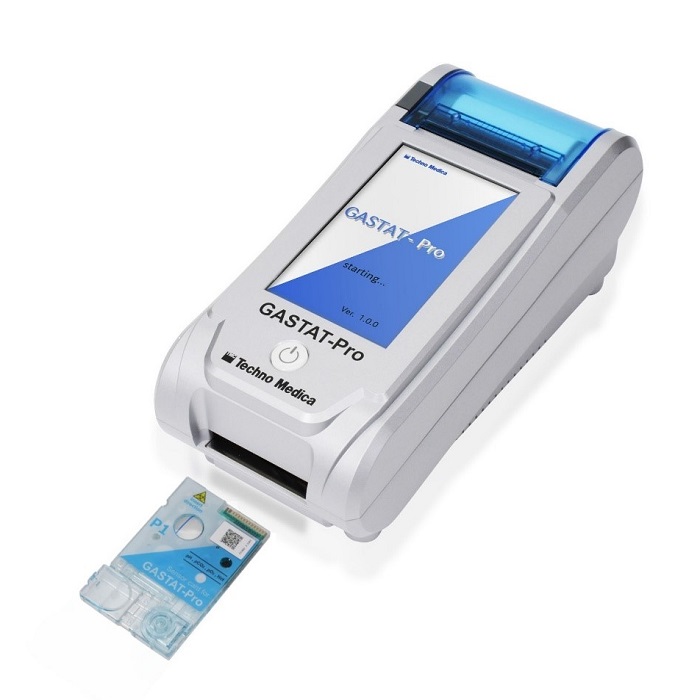

Blood Gas Analyzer
GASTAT-Pro
Portable Type Blood Gas System with a variety of features.
Japan Premium Quality.
●Blood gas and electrolytes test results
within 45 seconds.
(※Measured time after sample injection. )

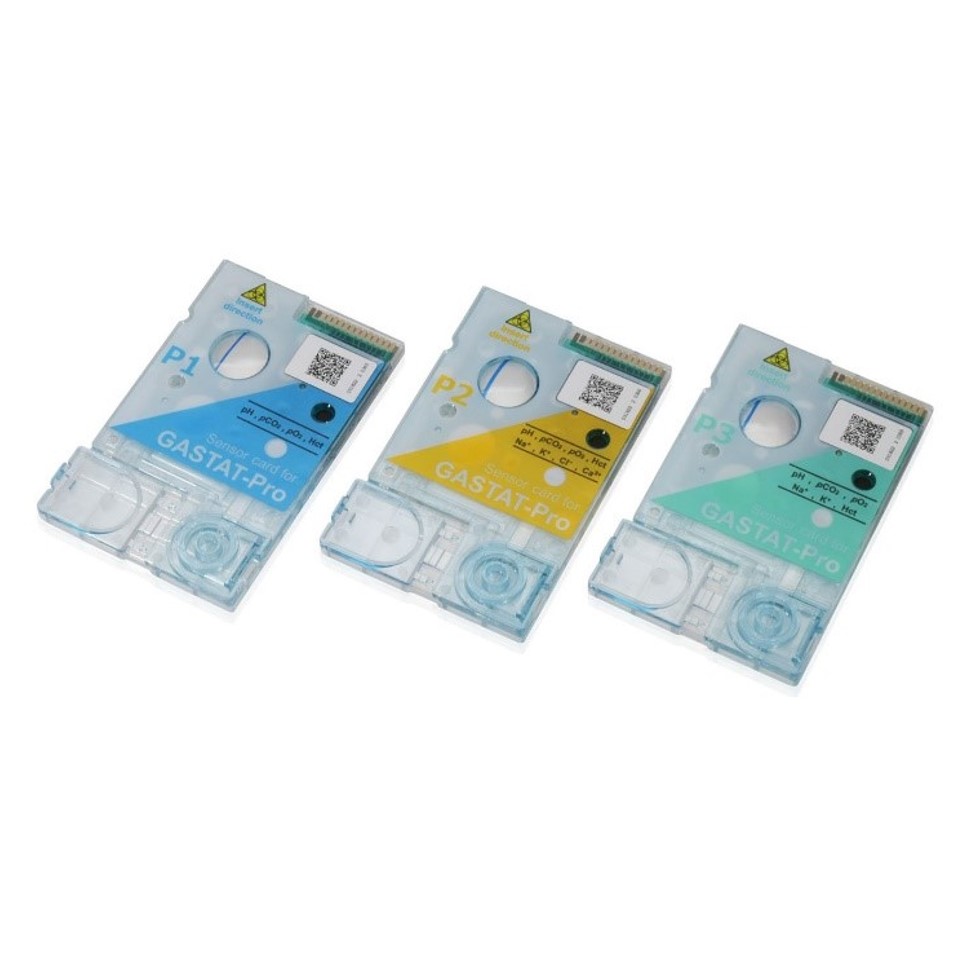

●Long Shelf-life Sensor Card
2 months in room temperature (9~30℃)
12 months in refrigerator (2~8℃)
●Automatic Sample Transport System
enables a sample to be transported by
device driven and it achieves stability of
test results.
| Item | Specification/Feature |
|---|---|
| Sample Type | Human blood (whole blood, serum, plasma) Dialysate ISE-CRS GASTROL-QC |
| Measured parameters | |
| pH : 6.000 - 8.000 | |
| pCO₂ : 5.0 - 250.0 Torr | |
| pO₂ : 5.0 - 720.0 Torr | |
| cNa⁺ : 50.0 - 200.0 mmol/L | |
| cK⁺ : 1.0 - 12.0 mmol/L | |
| cCl⁻ : 50.0 - 200.0 mmol/L | |
| cCa²⁺ : 0.25 - 5.0 mmol/L | |
| Hct : 10.0 - 75.0% | |
| Calculated parameters | cHb, cHCO₃⁻std, cBE(ecf), cBE(B), cBB, sO₂(est), ctCO₂(P), ctO₂(a), cCa²⁺(7.4), pO₂(A-a), RI,AG, pH(T), pCO₂(T), pO₂(T) |
| Sample volume | Over 90 µL |
| Analysis time | 135 seconds (90 seconds calibration + 45 seconds analysis) |
| Calibration | 1 point calibration before each sample analysis |

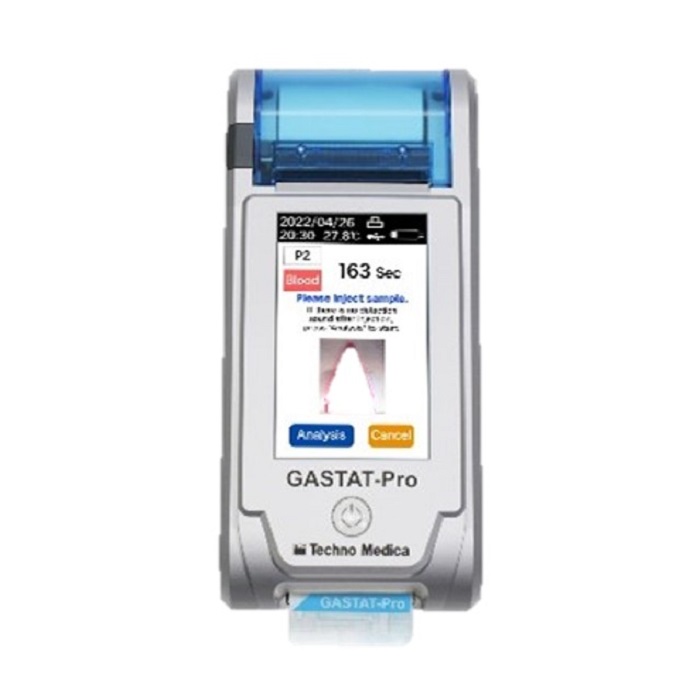

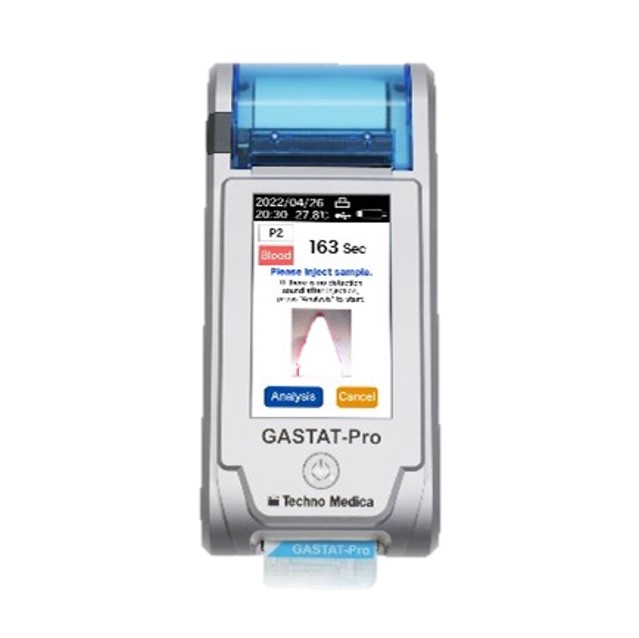

| Display | Color touch LCD |

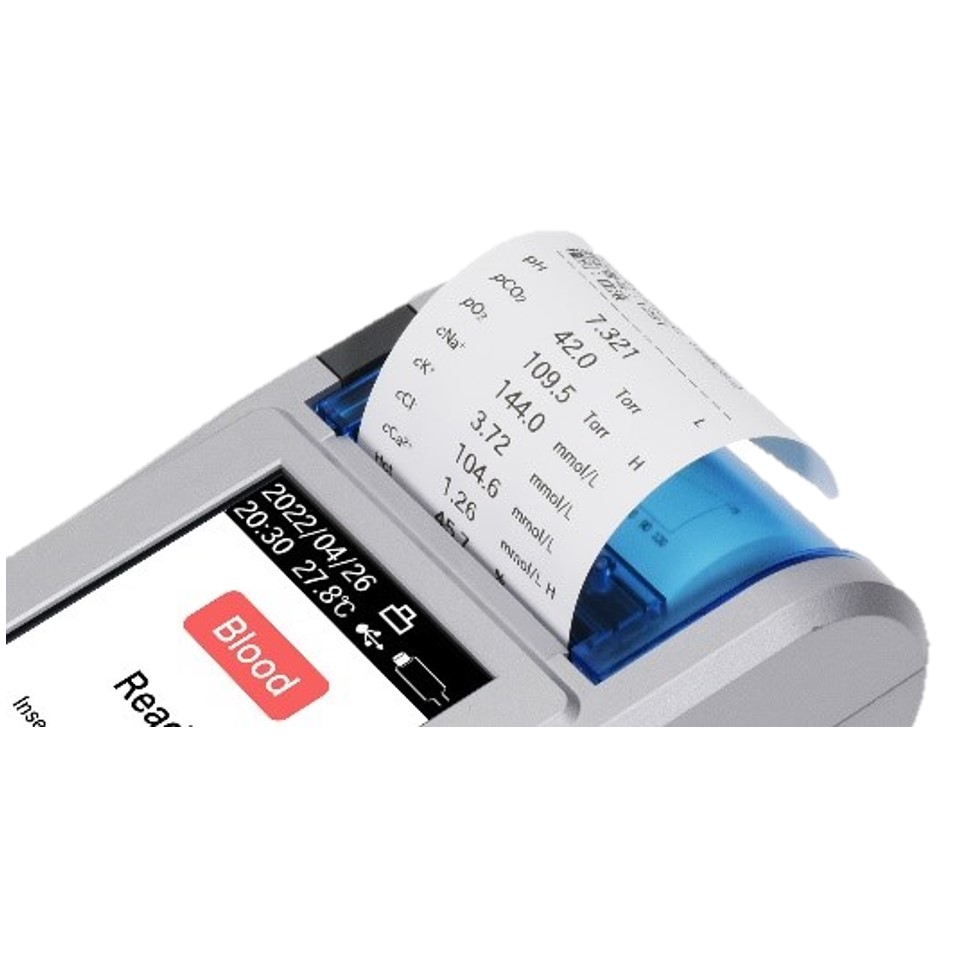

| Printer | 20 digits thermal (58 mm) |
| Data capacity | 5000 results |
| Interface | USB |
| Sensor card shelf life | 2 months in room temperature (9～30℃) 12 months in refrigerator (2～8℃) |
| Operating environment | Temperature: 10 - 32 ℃ Humidity: 20 - 80 % (No condensation) |
| Dimensions | Body: 100(W) - 220(D) - 90(H) mm Sensor card: 49.8(W) - 77.0(D) - 8.2(H) mm |
| Weight | 1.0 kg |
| Power | AA batteries 4 primary batteries/AA rechargeable battery 4 secondary batteries AC 100 - 240V 50/60Hz 0.58A (AC adapter) |
● Machine appearance and specification might be changed without notice.
